The product integrates cyclone separation and surface condensation filtration, and can effectively remove more than 99% of oil, water and dust in compressed air by cyclone separation and condensation filtration. The treated compressed air can basically reach solid particles without liquid oil and water and more than 3 micron level.
The product integrates cyclone separation and surface condensation filtration, and can effectively remove more than 99% of oil, water and dust in compressed air by cyclone separation and condensation filtration. The treated compressed air can basically reach solid particles without liquid oil and water and more than 3 micron level.

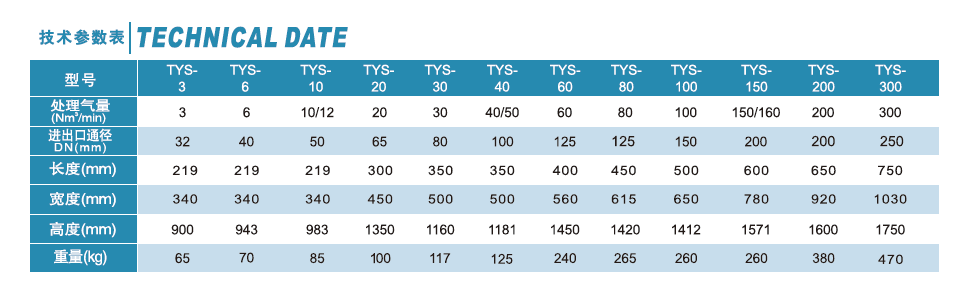

Technical indicators：
working pressure：0.6～1.OMPa （according to user's request can provide 1.0～4.0MPa）
Inlet temperature：≤50℃
pressure drop ：≤0.015Mpa
Gas Outlet oil content：<0.5mg/m³
Oil-water separation rate：≥99%
Filtering precision ：≤3μm
